Introduction

This mounting kit enables secure installation of up to two MXnet devices horizontally in a standard 19″ rack enclosure.

Package Contents:

  1. 1 × AC-MXNET-1G-R2 Rack Shelf
  2. 4x (2 sets) of Mounting Brackets
  3. Mounting Screws
  4. Standoff Screws

Tools Required (Not Included):

  1. Phillips Screwdriver (powered screwdriver not recommend due to risk of overtightening and stripping screws)
  2. Rack Cage Nuts & Screws

Safety Notices

  1. Install only in a dry, well-ventilated area.
  2. Ensure rack structure is secure and capable of supporting equipment weight.
  3. Avoid installing near sources of excessive heat.
  4. Disconnect power and all cables from devices before rack mounting.

Installation Instructions

This mounting kit consists of two main components.

1RU Rack Mount Shelf

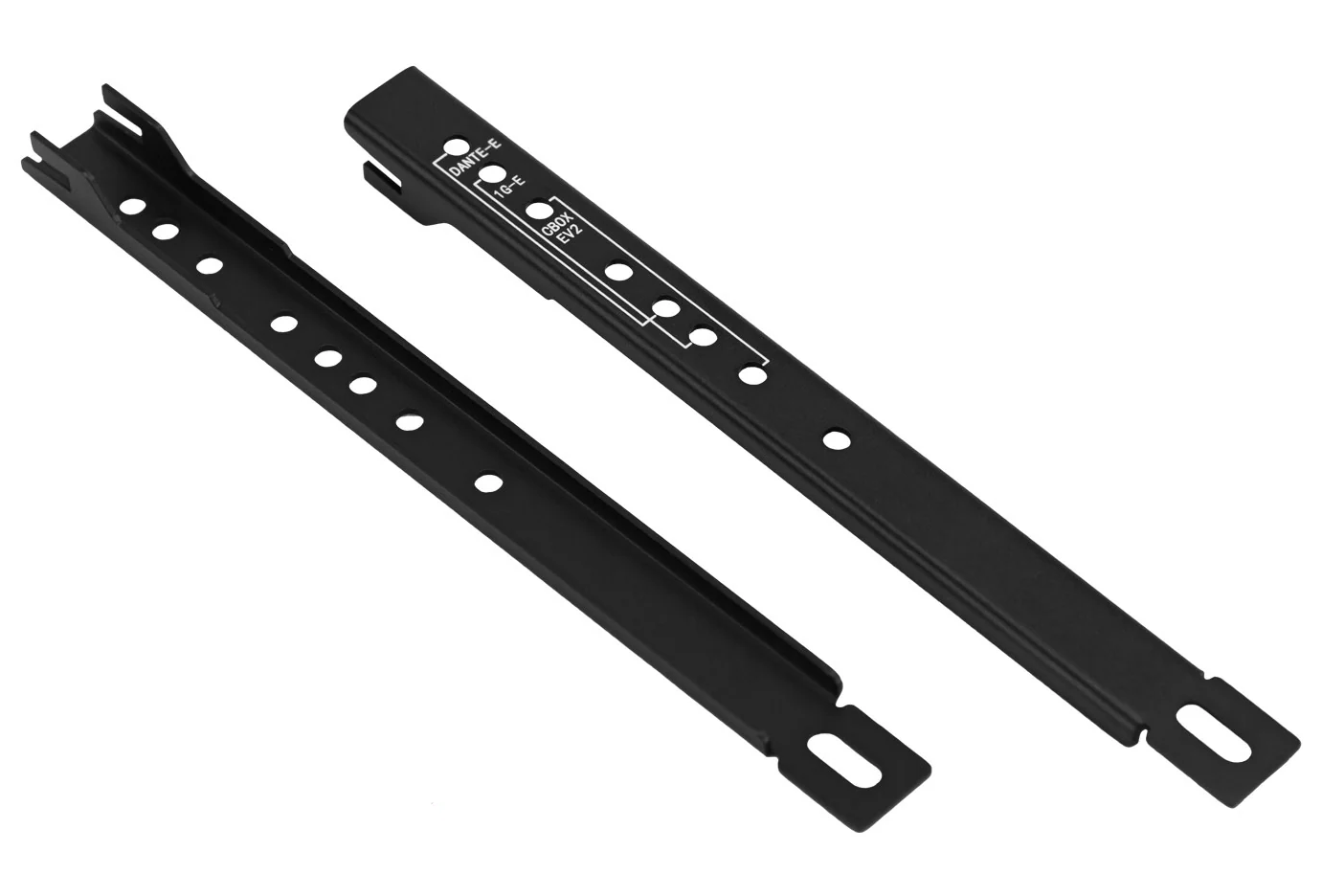

Mounting Brackets

Attaching the Mounting Brackets

  1. Flip over the MXnet endpoint (encoder, decoder etc...) to view the four screw holes on the underside of the device.

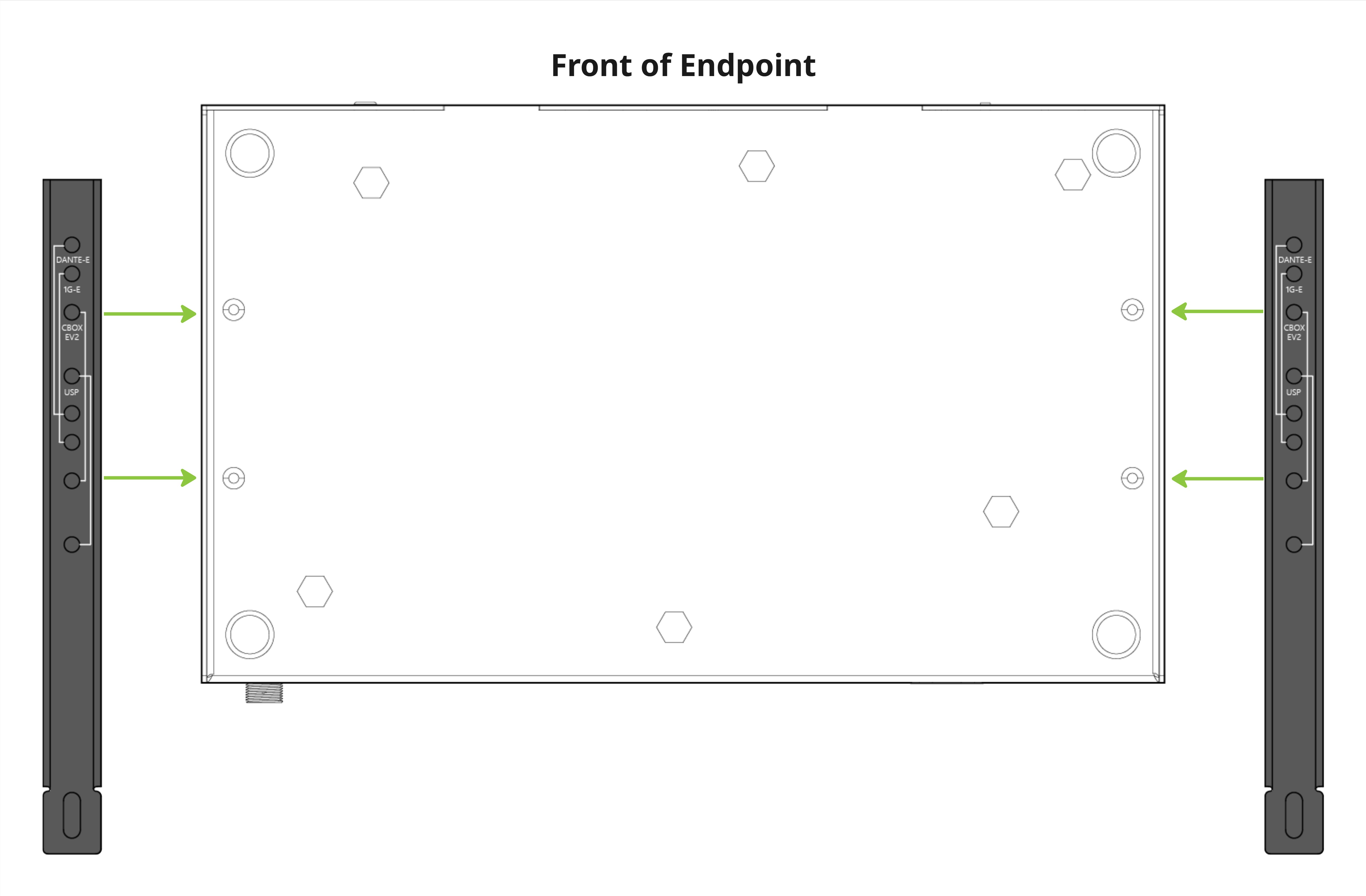

  2. Grab a set of mounting brackets (2) and align the holes of the bracket with the holes on the endpoint. Use the label guide to align the correct set of holes based on the device you are mounting. The labeled side of the bracket should facing the bottom of the MXnet endpoint.

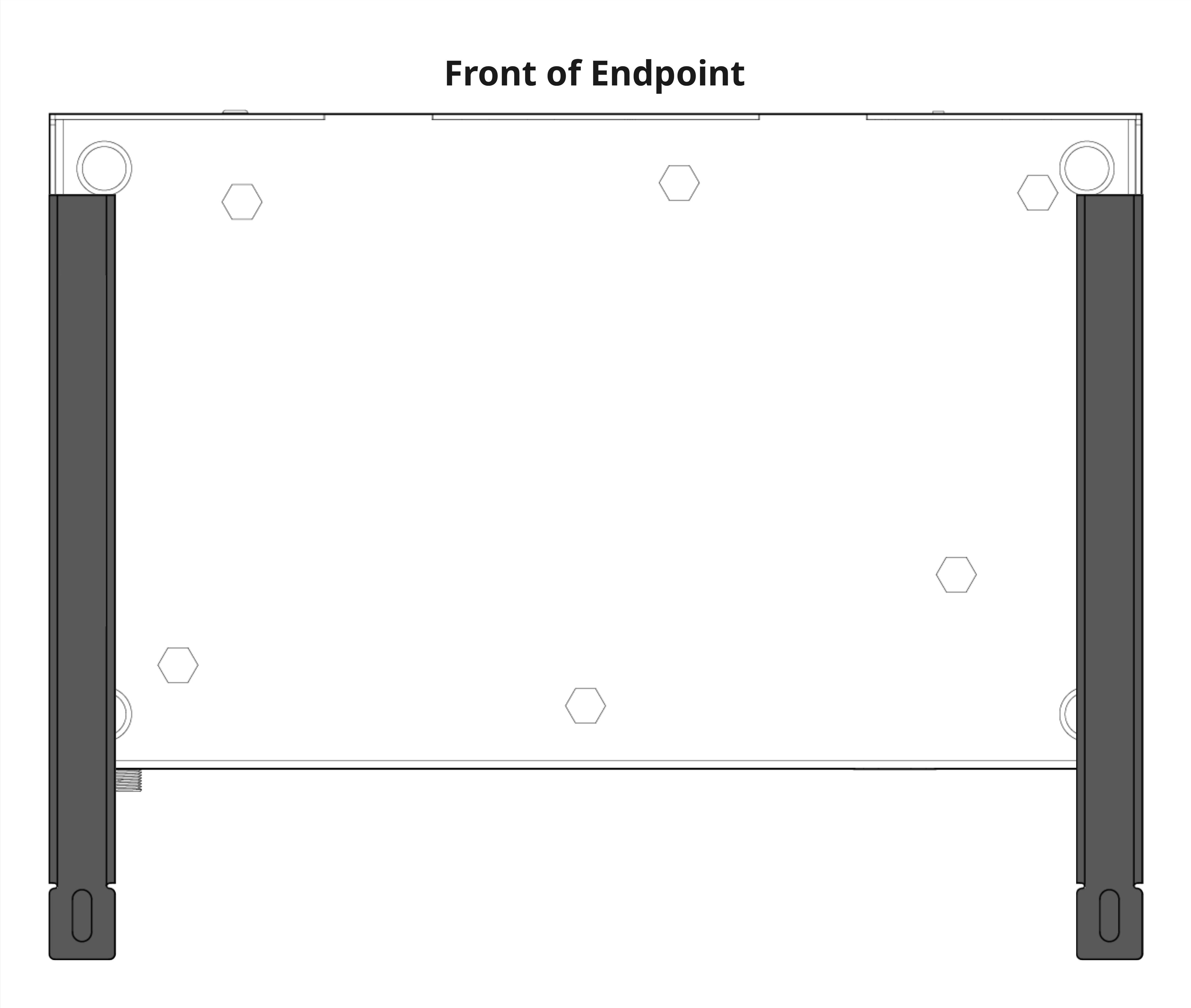

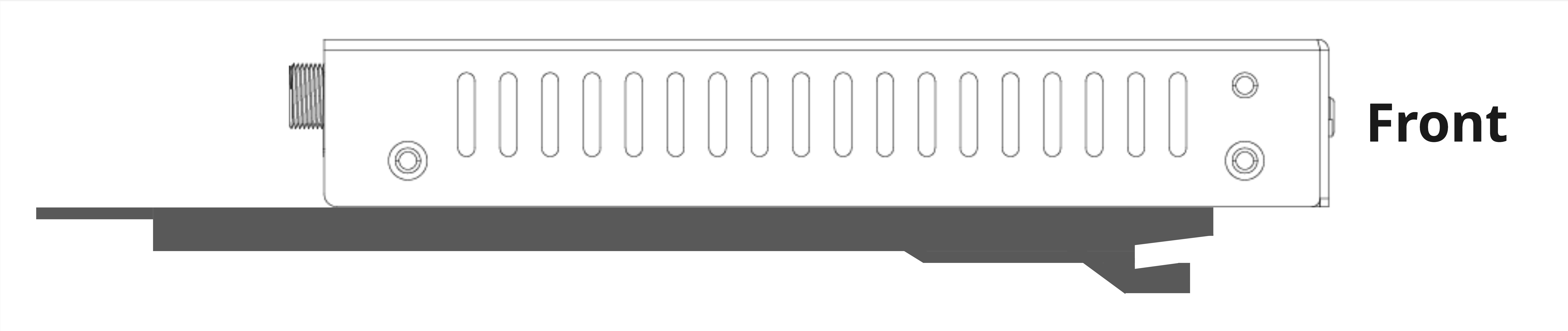

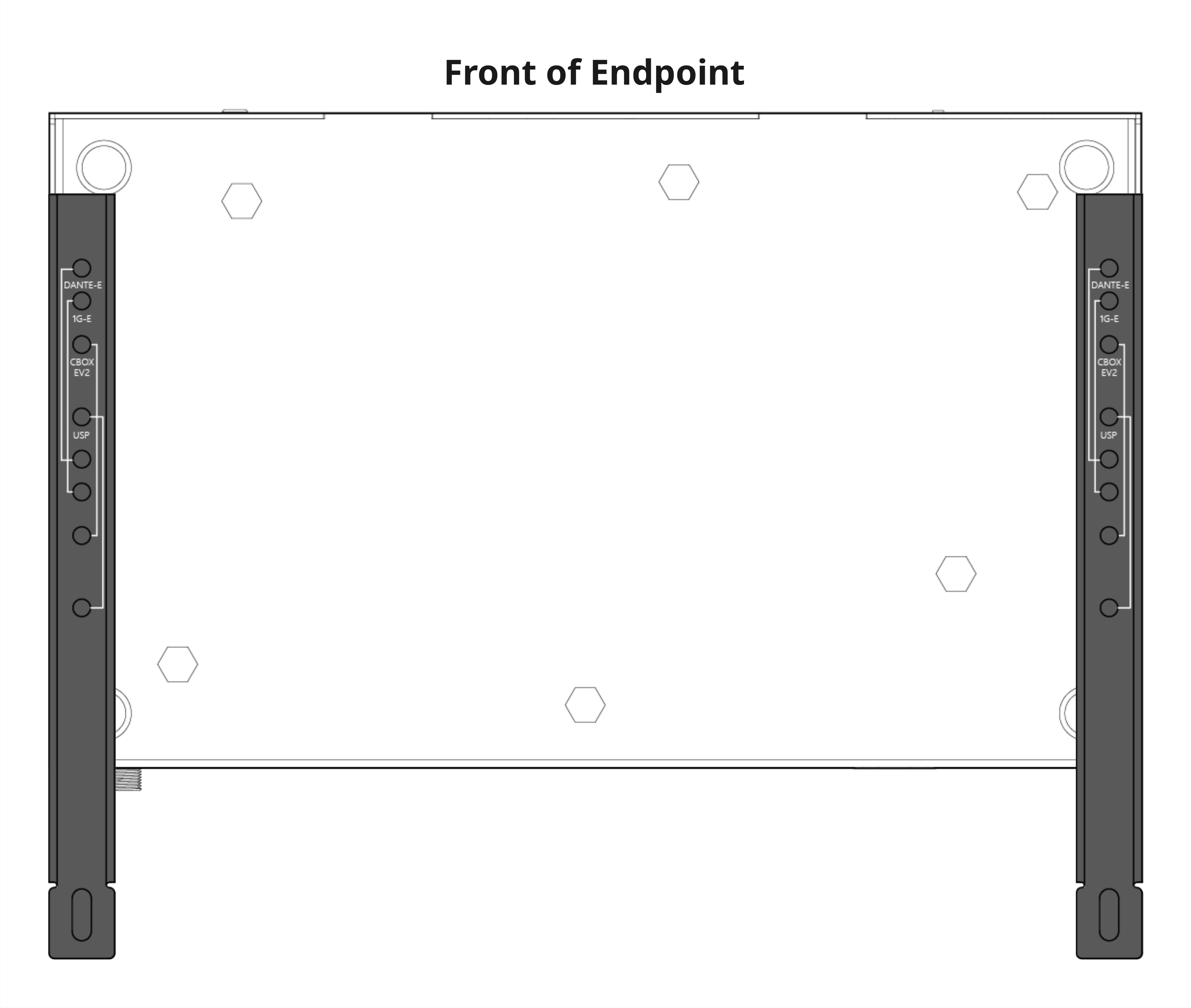

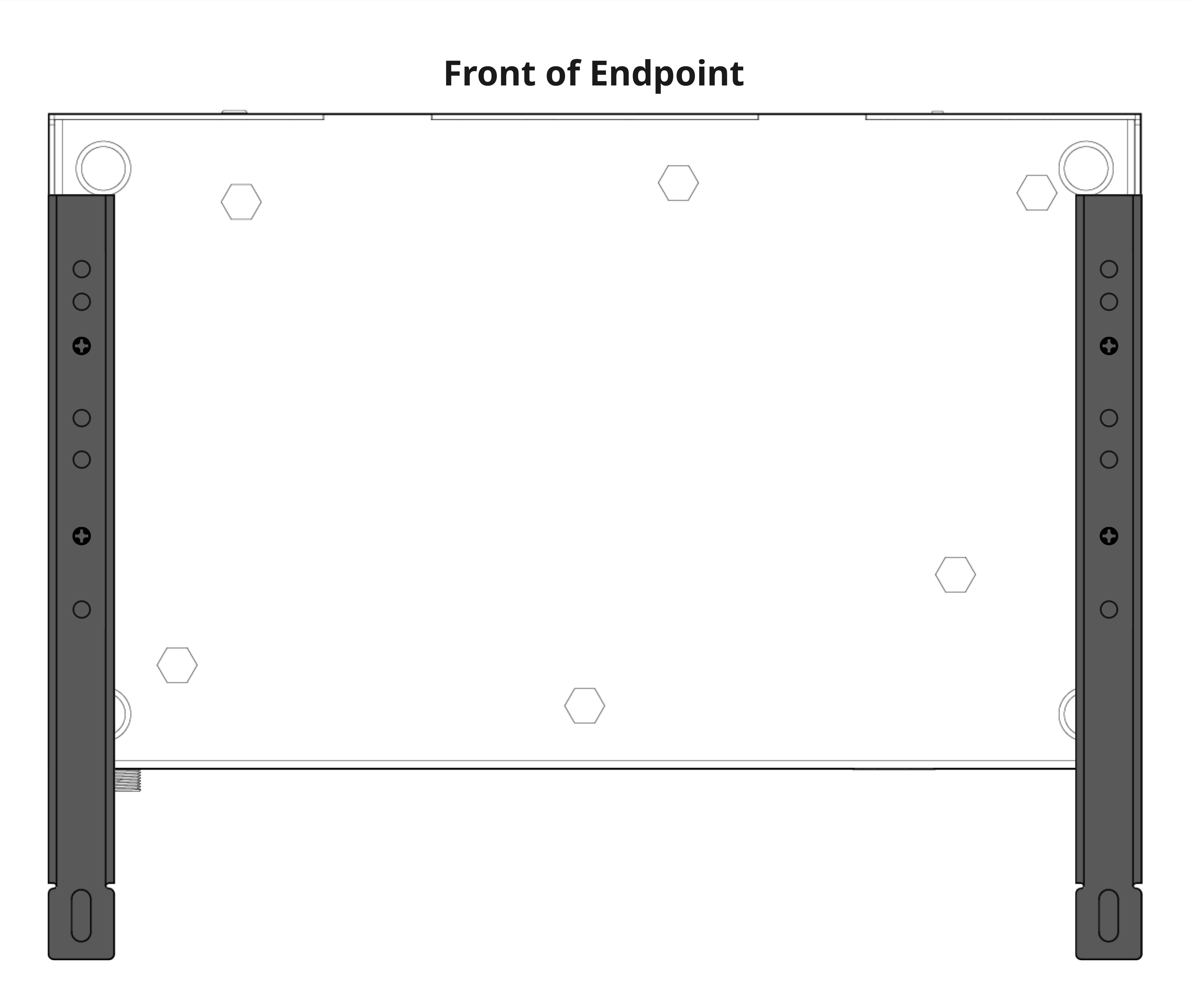

  1. Using the the included screws, securely attach the brackets to the endpoint. It is normal for the front of the endpoint to extend approximately 1" past the mounting bracket. This allows for it to sit flush against the front of the rack shelf.



Attaching the Endpoint to the Shelf

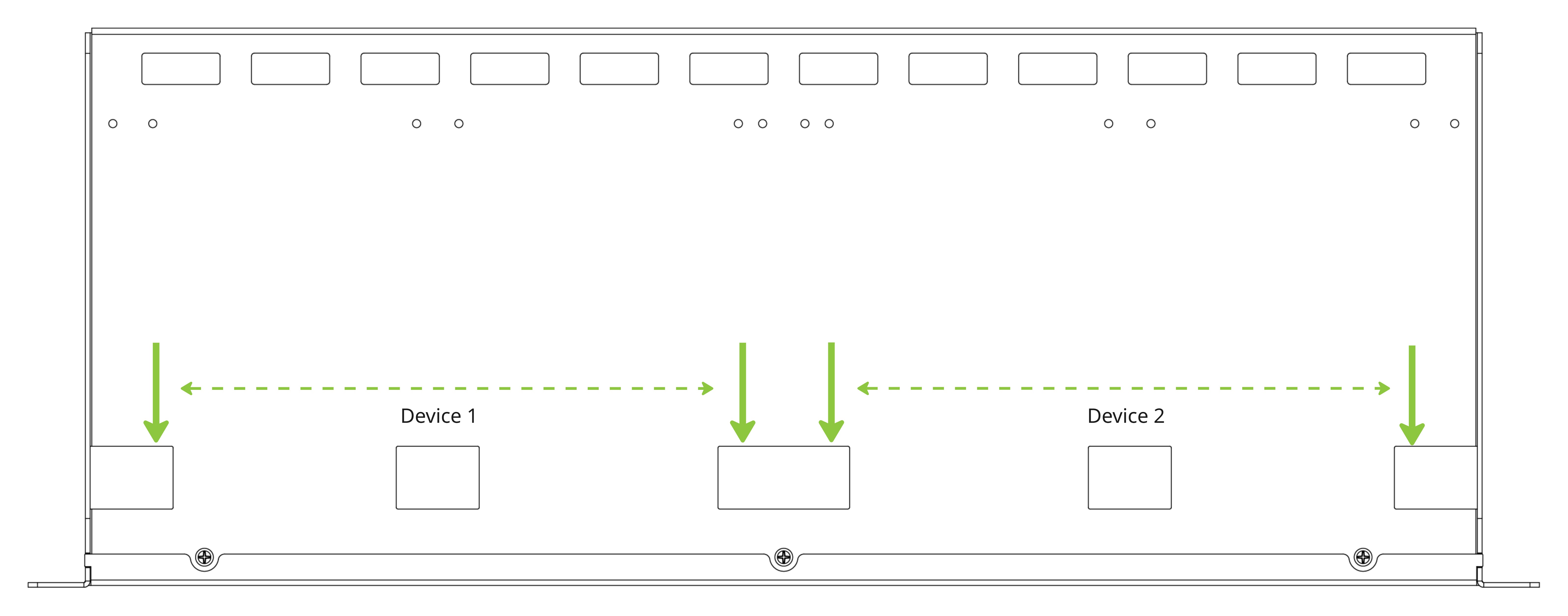

The 1RU shelf has several rectangular cutouts. The larger cutouts towards the front of the shelf are used to attach the slotted end of the mounting brackets to the rack shelf.

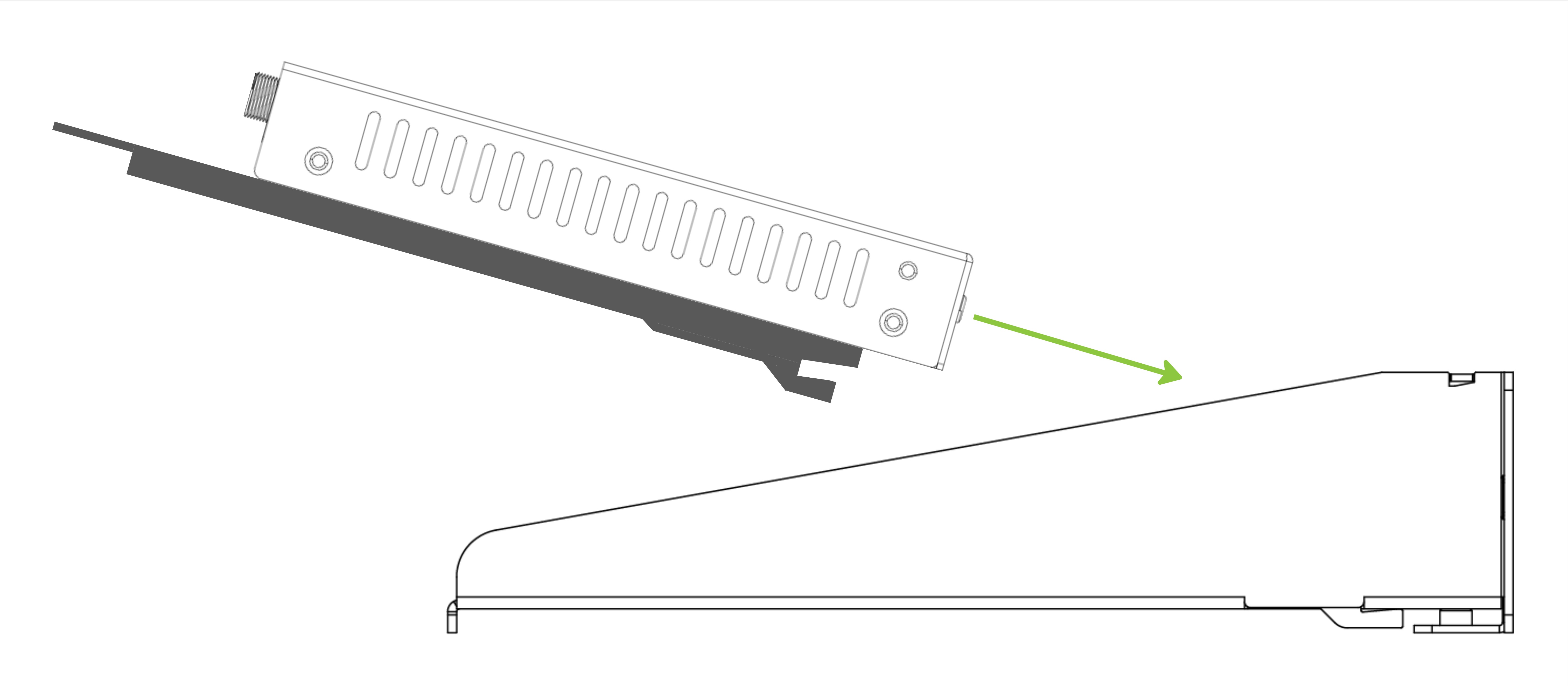

Angle the endpoint so that the slotted end of the bracket aligns with the holes shown in the image above.

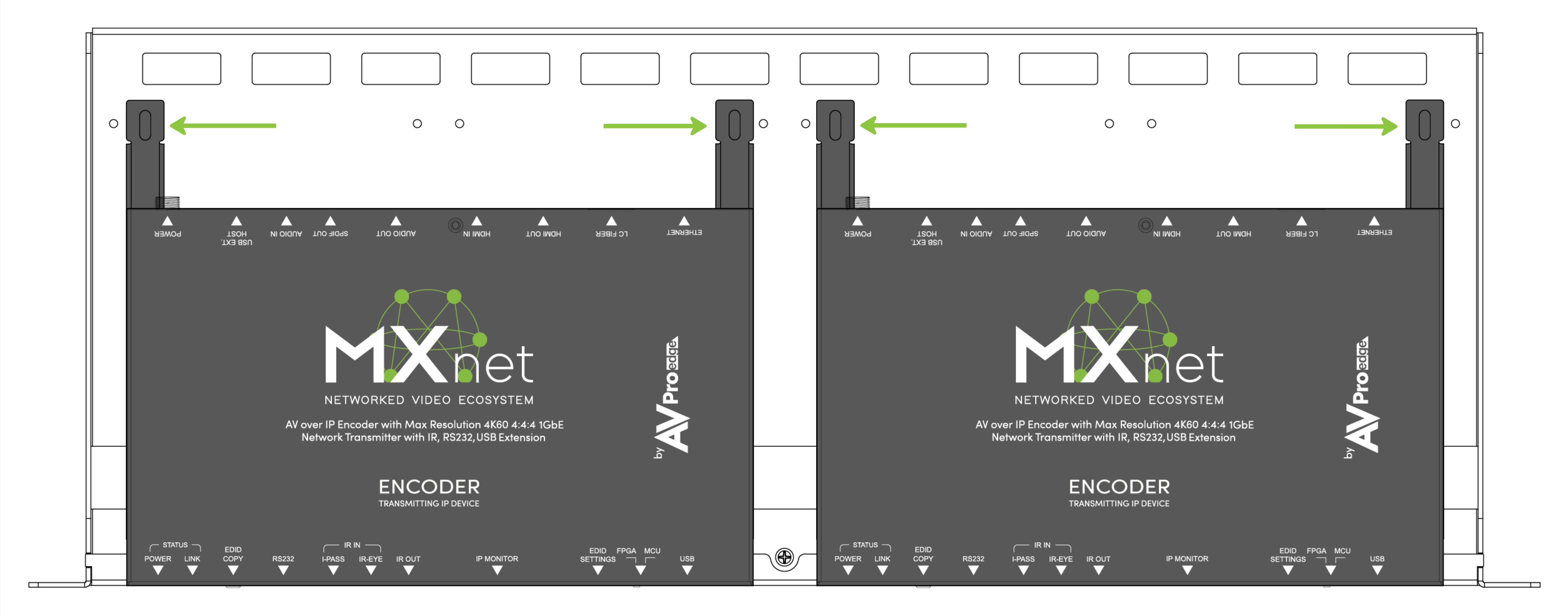

With the front of the brackets slotted in place, use the included screws to fix the opposite end of the brackets to the shelf.

Unsupported Products

Some MXnet devices cannot be mounted to the R2 rack due to size differences. Those specific devices are listed below.

Evolution I Series

  1. AC-MXNET-1G-DANTE-E

Evolution II Series

  1. AC-MXNET-1G-EV2WP
  2. AC-MXNET-1G-MV41V2

USP Series

  • AC-MXNET-USP-PR

10G Series

  • 10G endpoints are not supported with this rack kit. The AC-MXNET-10G-HDRACK must be used.

Support

For additional assistance or product documentation (user manuals, firmware, FAQs), visit the AVPro Knowledge Base or contact technical support.
